Residential Gateway (RG) Model 3801HGV-B

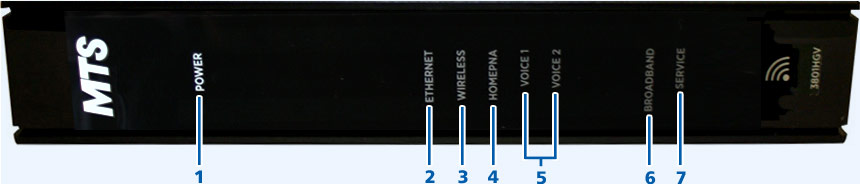

- Front Panel Lights
Key LED Description 1 Power - Solid Green: Residential Gateway is powered on.
- No light: Residential Gateway is not receiving power.
- Flashing Red: Residential Gateway is booting.
- Red: Residential Gateway could not boot/start.
2 Ethernet Flashing Green: Traffic is being sent/received. 3 Wireless Flashing Green: Traffic is being sent/received. 4 HomePNA - Solid Green or Flashing Green: HPNA (Coaxial connection) is working properly.
- No light: HPNA (Coaxial connection) is not active.
5 Voice 1 and 2 Not compatible with Bell MTS service. 6 Broadband - Solid Green: Good Internet connection.
- No light: Residential Gateway is not yet fully powered.
- Flashing Green: Residential Gateway is attempting to establish an Internet connection.
- Flashing Red: No DSL or Ethernet signal on the line.
- Flashing Green and Red: Connection failed for over 3 consecutive minutes.
7 Service - Solid Green: Residential Gateway is connected to the Bell MTS network.
- Flashing Green: Residential Gateway is trying to connect to the Bell MTS network.
- Red: Residential Gateway failed to connect to the Bell MTS network.
- No light: Bell MTS network connection has not yet been established.

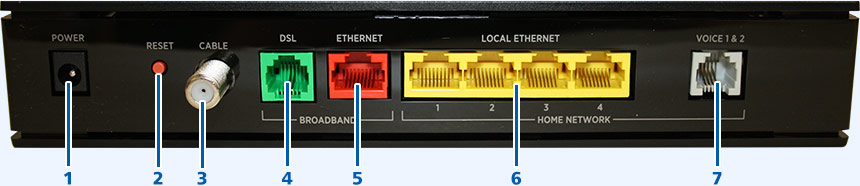

- Rear Panel Function
Key Item Function 1 Power DC Power Adapter Connector. 2 Reset Press and hold for 5 seconds to reset to factory defaults. 3 Cable Line HPNA (Coaxial) connector to connect your Set-Top Boxes to the Residential Gateway. 4 & 5 DSL or Ethernet RJ-45 Ports (Ethernet) to connect the Residential Gateway to the Bell MTS service. Bell MTS FiON customers should use Ethernet port. All other Bell MTS customers should use the DSL port. 6 Local Ethernet 1-4 RJ-45 Ports (Ethernet) to connect computers and other network devices to the Internet. 7 Voice 1 & 2 Not compatible with Bell MTS service. - Finding the SSID and Wireless Network (Wi-Fi) Key
You can find the SSID and Wireless Network Key on a sticker on the bottom of the unit.
