Setting up Custom Wi-Fi on a 5168N or HomeHub 3000
How to set up custom Wi-Fi on 5168N
Ensure you have a device directly connected to the 5168N either with Ethernet or over Wi-Fi.
Open up a browser and type 192.168.100.254 in the address bar.

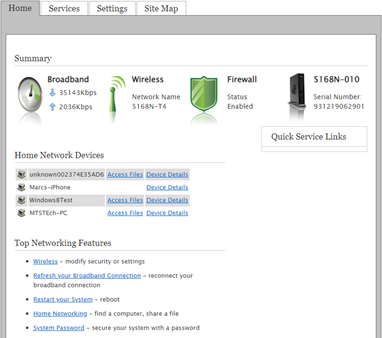

Click on Wireless.Images may not be exactly as shown.

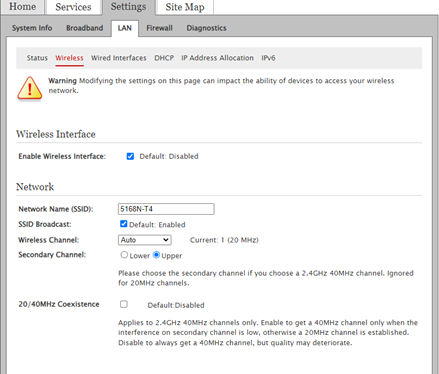

In the Network section in the Network Name (SSID) field, type in your desired network name.Images may not be exactly as shown.

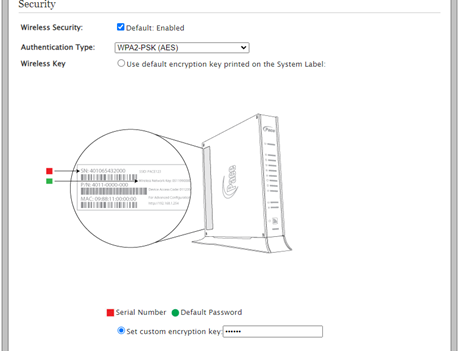

In the Security section click on Set custom encryption key: and type in the desired wireless password.
Your wireless password should be a minimum of eight (8) characters to a maximum of sixty three (63) characters. Acceptable characters include upper and lower case alphabetic letters, numeric digits and special symbols. Images may not be exactly as shown.

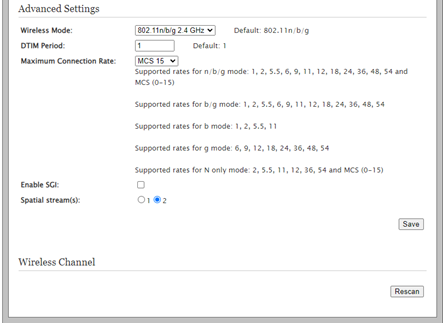

Scroll to the bottom of the page and click on Save.Images may not be exactly as shown.

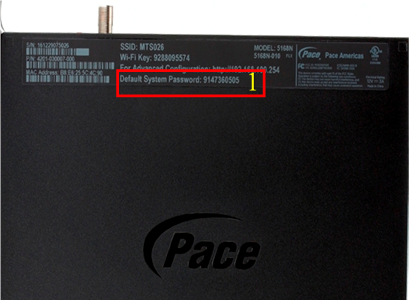

You will be asked to enter the Default System Password which can be located on the side of the 5168N (section 1).
If the Default System Password doesn’t work, use the Wi-Fi Key. Images may not be exactly as shown.
Click Save to save the settings.
How to set up custom Wi-Fi settings on HomeHub 3000
Ensure you have a device directly connected to the HomeHub 3000 or you are connected to the Wi-Fi.
Open up a browser and type 192.168.100.254 in the address bar.

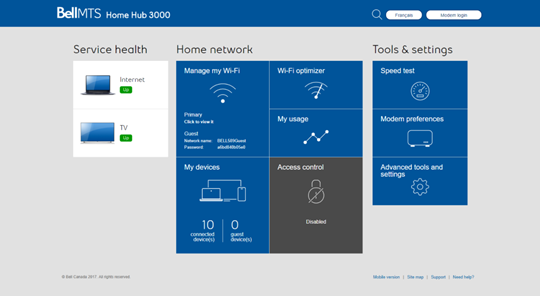

Click on Manage my Wi-Fi. Images may not be exactly as shown.

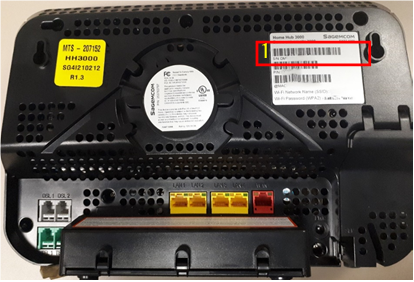

You will be asked to enter a password. The default Admin password for the HomeHub 3000 is the Serial Number printed on the RG (section 1).
When entering the Serial Number ensure all letters are in capitals. Images may not be exactly as shown.

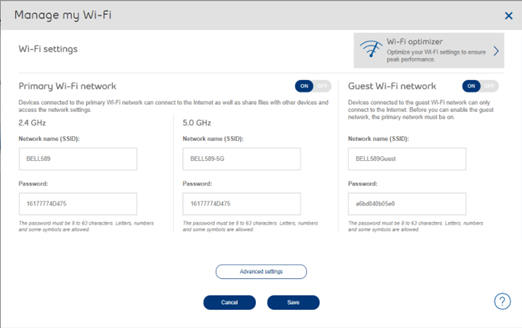

In the Primary Wi-Fi network section you can change the Network Name in the Network name (SSID) section and the Wireless Network Password in the Password field.
Your wireless password should be a minimum of eight (8) characters to a maximum of sixty three (63) characters. Acceptable characters include upper and lower case alphabetic letters, numeric digits and special symbols.
You are able to enable the guest Wi-Fi network if required. Devices connected to the guest Wi-Fi network can only access the Internet. Images may not be exactly as shown.
